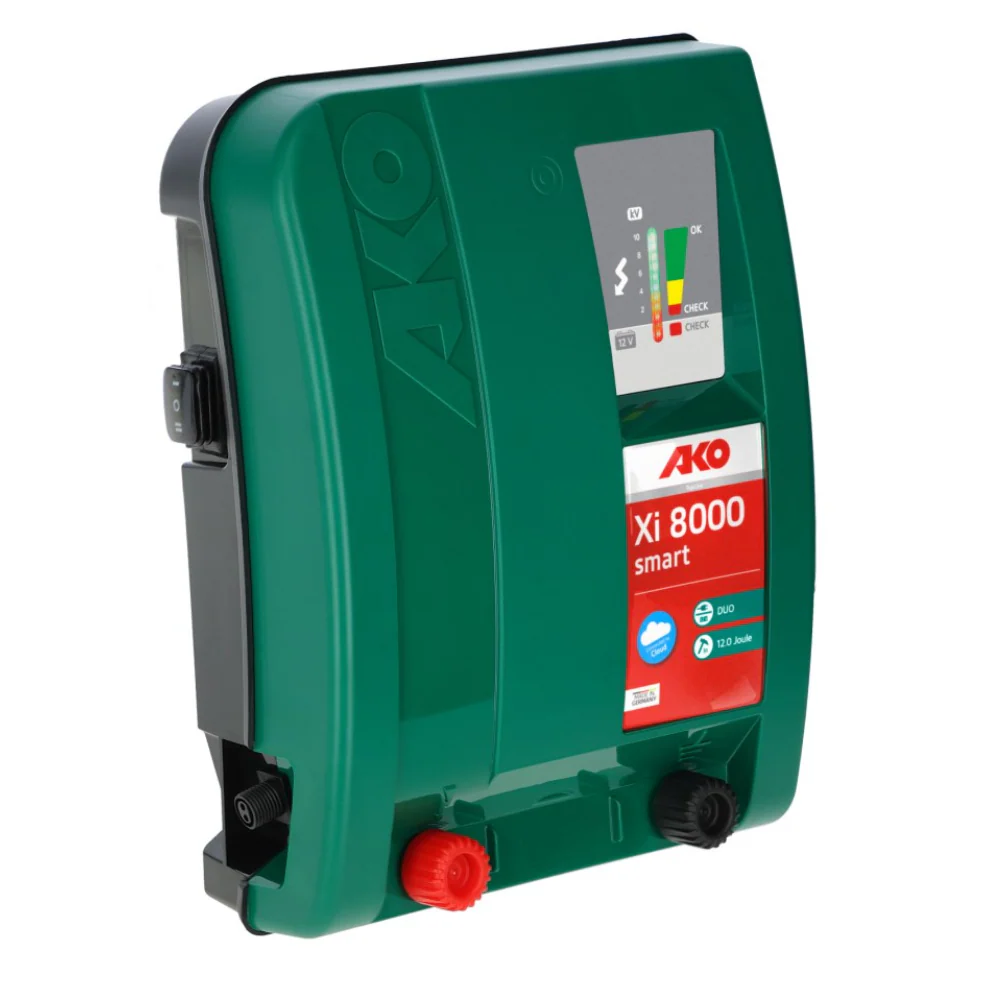

AKO Duo Power Xi 8000 smart

The AKO Duo Power Xi 8000 Smart delivers exceptional performance combined with advanced smart technology.

With an impressive 12 joules of output energy, along with cloud connectivity and free mobile data access, this unit ensures consistent, high-level performance wherever you are. Its versatile 12/230 V dual power supply allows for both mobile and stationary use, making it suitable for fencing systems up to 50 km in length.

You can easily monitor and control the energiser via a smartphone app or web browser, giving you complete flexibility and convenience. Designed to perform even in areas with heavy vegetation

Impact force and fence length: the AKO Duo Power Xi 8000 smart is equipped with a charging energy of 12 J and a maximum voltage of 11,200 V. The device is used for fence systems up to 50 km without vegetation.

Power supply and animals: the device is a 12/ 230 V DUO fence device that can be operated with a 12 V connection cable or a 230 V mains adapter. Ideal for horses, cattle, sheep, wild boar and wolves.

Functions: The Smart Energiser has an integrated connection to the cloud. This function enables distance-independent control and monitoring of the fence system via smartphone.

Display: the device is equipped with a multi-coloured LED bar graph display (11 LEDs). The lower "red" LED indicates the battery check. The 10 LEDs above (red/yellow/green) are used for visual monitoring of the output voltage. Red =< 2,000 V | Yellow/green => 2,000 V.

Housing and assembly: the robust housing made from UV-resistant plastic is weather-resistant and long-lasting. An integrated fitting allows wall mounting. If installed outdoors, the device must also be protected from rain and sunshine.

Model	Xi 8000 smart
Stored Energy	12 J
max. discharge energy	8 J
max. voltage	11200 V
Voltage in Open Circuit	10200 V
Voltage at 500 Ohms	8700 V
Voltage at 100 Ohms	4500 V
theoretical fence length as per VDE	240 km
max. fence length without vegetation	50 km
max. fence length with medium vegetation	17 km
max. fence length with high vegetation	7 km
Approx. Number of Electrifiable Nets	30
Qty 1 m earth posts	6
Qty 2 m earth posts	3
Power Consumption	165 mA - 570 mA
